PostSubject: Interesting Photo's, vintage    Sun Aug 12, 2012 3:22 am

Heres just some photo's of some of the Axis conversions I've seen.



M3 Lee


Char B1-Bis


Panhard


M4A3 Sherman

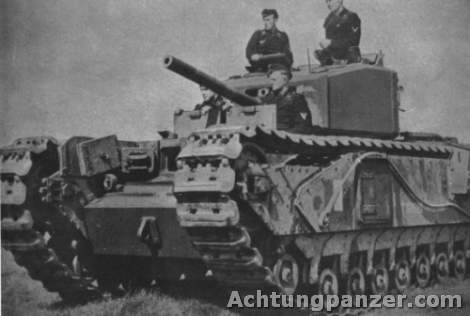

Churchill


Somua




Back to top Go down
View user profile
rpw1

avatar

Posts : 297
Join date : 2012-03-27
Age : 64
Location : Calgary Alberta Canada

PostSubject: Re: Interesting Photo's, vintage    Sun Aug 12, 2012 12:20 pm

Wow! I know the Nazi's used captured equipment. but I had no idea the extent of it. Thanks Judge!

_________________


Lo there do I see my father, Lo there do I see my mother, my Sisters and my brothers , Lo there do I see the line of my people, back to the beginning. Lo, they do call me, they bid me take my place among them, in the halls of Valhalla, where the brave may live forever
Back to top Go down
View user profile http://www.claymoremedia.com
vanhefty

avatar

Posts : 258
Join date : 2012-06-13
Age : 55
Location : Vancouver Island

PostSubject: Re: Interesting Photo's, vintage    Mon Aug 13, 2012 2:31 am

My grandfather had a few photos from the war showing converted or captured Nazi equipment.
Pretty amazing stuff. Like German Bren carriers for example. But also, Canadian Half Tracks and MG42s etc.
I guess you use what you can get.
Back to top Go down
View user profile
Judge-FF

avatar

Posts : 265
Join date : 2012-01-24
Age : 36
Location : I am not Vanhefty on Team Speak!

PostSubject: Re: Interesting Photo's, vintage    Mon Aug 13, 2012 12:13 pm

Notice on the Bis, the absecence of the hull mounted 76 mm?
Back to top Go down
View user profile
Judge-FF

avatar

Posts : 265
Join date : 2012-01-24
Age : 36
Location : I am not Vanhefty on Team Speak!

PostSubject: Re: Interesting Photo's, vintage    Mon Aug 13, 2012 11:22 pm

yet a few more...


Renault R-35


Hotchkiss H-35

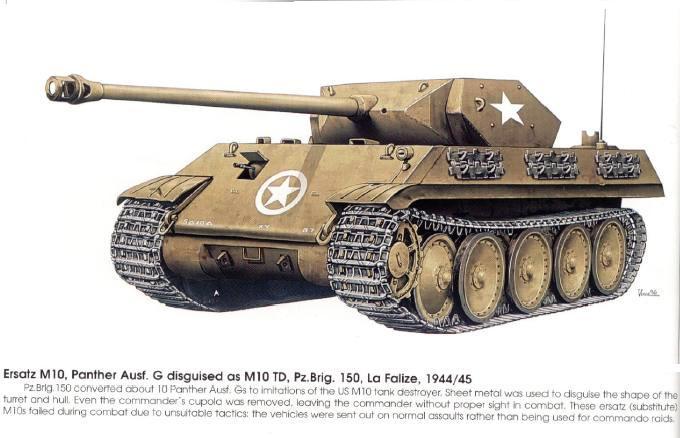

This is one is very, very interesting. Will have a recap at the bottom of the second pic


In preparations for the Ardennes Offensive, around 10 Ausf Gs were converted to resemble American Gun Motor Carriage M10 tank destroyer. The conversion was done by welding additional metal sheets to the turret and hull along with application of US Army camouflage and markings. Designated Ersatz (Substitute) M10, they all equipped Panzer Brigade 150, commanded by SS-Standartenfuehrer Otto Skorzeny

Goliath tanks

If you don't know what these are, these were remote controled tanks. Germans invented these, for various reasons, as you can look them up and find out. They were very much, a head of thier time on these.
Back to top Go down
View user profile
Trifftnix

avatar

Posts : 37
Join date : 2012-06-26
Age : 46
Location : Germany

PostSubject: Re: Interesting Photo's, vintage    Tue Aug 14, 2012 10:09 am

2 pics of my favorit ww2 tank - the Leichttracktor
this is my choice, if I would be asked what tank to get into wwiionline.




and my modern favorit - the Wiesel
it can also deployed via parachute drop - the perfect FF plaything. Smile
it uses a stock VW Golf motor and can go 80kmh if tuned a bit.




and more pics are found there: http://www.panzer-modell.de/referenz/in_detail/wiesel_mk20/wiesel_mk20.htm
Back to top Go down
View user profile http://kali-fighter.de/
vanhefty

avatar

Posts : 258
Join date : 2012-06-13
Age : 55
Location : Vancouver Island

PostSubject: Re: Interesting Photo's, vintage    Tue Aug 14, 2012 1:41 pm



Canadian Military Pattern Gun Tractor. Chev 6 cal engine, 20mm armour, 5 seats, gun jack on rear. designed to carry the 17 pdr at speed over hills and across country. 4wd. Starting in 1930. Later replaced by the CT15 below.



Archer anti-tank platform Mounting first the 17 pdr then the 25. It was designed to be driven with the gun facing the rear. There are pintles for machine guns front and rear. First starting in 1942, some 3000 were produced and deployed with Canadian Forces. It uses the Canadian Valliant hull and engine.



Based on the Canadian RAM tank platform though made entirely by Ford of Canada in their Windsor plant. It was meant to replace the Canadian Universal Carriers, though it never did. Only 100 saw service



The Sexton: 17 and 25 pdr variations. Again, RAM chasis. This and the Priest, a lighter variation, we very successful mobile artillery, used both as indirect fire artillery and direct fire close support, including anti-tank. 60 of these landed with Canadian Troops at D-day. 80 at Anzio. Later in the war they were refit with newer engines and the 105mm long rifled gun.



The venerable Canadian Truck 15. 20mm armour all over, open canvas top with 4 gun pintels and one turret ring for a 30 cal machine gun.
They could be equipped with the artillery jack and ammo racks. They began to see service in 1943 and by DDay there were 3000 on the beach with Canadian Troops. Anyone who lives in Holland has probably seen these trucks or the their variants because at the end of the war we left them ALL behind. Not a single one every saw service in Canada. And at the end of the war Canada adopted the Swedish Bandvagon as it's standard transport for infantry and artillery. You still see the some Bandvagon's used in training cadres in Canada. There used to be about 300 of them at the base in Calgary. Last time I visited was in 2002.

IF BGE were to add one vehicle to the game I would say add the Archer. It was an incredible tank killer, and really fast. It was used very successfully for long range ambush and shoot and scoot support.

I would really like to see BGE add Canadian forces, not only because I'm Canadian, but because Canada contributed almost as much equipment and manpower to the European Theatre as the Americans, and far far more than the british or any other allied country. By 1944 1.2 milliion Canadian soldiers were on the ground in Europe. And that does not include the more than 250,000 Canadians serving with the US forces in Europe. Canadian Equipment differed significantly from British and American equipment having an entirely different design philosophy from either nation. Not the least of which is a doctrine of anti-tank rather than tank equipped. Canadian soldiers were issued AT round for their 303 rifles starting in 1932. Every single soldier was issued a few rounds of AT rifle ammo, the famous tungsten penetrator. Anyway, it would be nice. But I don't see it happening.
Back to top Go down
View user profile
rpw1

avatar

Posts : 297
Join date : 2012-03-27
Age : 64
Location : Calgary Alberta Canada

PostSubject: Re: Interesting Photo's, vintage    Tue Aug 14, 2012 4:13 pm

Its because they are afraid of us Hefty. There was more fighting done by Canadian troops in WW II than the French ever did.
